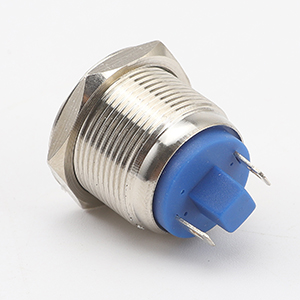

19mm Momentary Stainless Steel Metal Push Button Switch Waterproof Flat Top 12V 24V 36 DC

  • Size: 19mm
  • Head Shape: Ball Shape / Flat / High Flat
  • Connection type: Wiring / Pin type
  • Material: Stainless steel / Brass / Aluminum Oxide / Engineering Plastics
  • Product description: 19mm Momentary Stainless Steel Metal Push Button Switch Waterproof Flat Top 12V 24V 36 DC
  • INQUIRY   EMAIL

Installation Instructions and Notes


  • The connecton type with wire and suitch or indicator light: connector type, terminal type, pin welding type or other types according to thelproduction type.
  • The Connector connection is our patent With quick dismounting, good contact, reliable protection terminal, beautiful appearance, etc, we strongly recommend that you'd better use this type of connection preferentially. Please note following issue when adapting the pin welding connection: 20-30W electric soldering iron will be highly recommended, Control the temperature within 300-330. And you must finish the welding within 2 seconds after adding the soft solder Or your misoperation will lead to the plastic out of shape, switch with bad contact, insensitive action, etc. Please follow these instructions.



  • Switch and Indicator light have the dustproof and waterproof sealing ring inside themselves. The terminal of the surface has up to the IP65, IP66, IP67 performance grade of high dustproof and waterproof. IP65-Dustproof totally, keeping from the water spraying but permitting little water in IP66-Dustproof totally, keeping from the water spraying mightily and permitting little water in. IP67-Dustproof totally, keeping from the soaking effect in 15mm-Imm depth of water or short time
  • The O shape sealing ring on the faceplate can be installed in the inner side or outer side to waterproof. As shown as below picture

O shape sealing ring

Lamp Parameters

Lamp Type

Double direction LED lamp bead(Terminal regardless of positive and negative)

Emitting Color

Red Green Yellow Orange Blue White

Rated Voltage

AC/DC6V、12V、24V、36V / Other voltage can be customize

Rated Current

≤15mA

Approach of Reduction Voltage

All is reduced by inside resistance

Reference Lifetime

40,000 hours

Technology Parameters

Installation hole size

φ 19mm
Switch rated value

2A/250VAC

Switch combination

1 NO / 1 NC

Operation type

Momentary type /Latching type
Contact resistance
≤50 mΩ

Insulation resistance

≥1000 mΩ

Insulation strength

2000VAC

Operating temperature

-20℃~ +55℃

Mechanical life

>1 million times

Appliance life

>0.5 million times
Panel thickness

1~10mm

Operation travel

About 2.5mm

IP degree

IP65
Material of contact
Silver alloy
Material of Button
Stainless steel
Material of Body Brass clad nickel
